Unit SpaceFinder Shelving Components By Jeter
Unit Spacefinder by Jeter can be configured to meet the exact storage needs of any organization. Framework can be changed to accommodate any media and various accessories can be combined in one unit to allow side-by-side storage of several different types of media. Accommodate files, binders,
tapes, books, or any other media. View Product Highlights.
Contact us at 1-888-891-1970 or email at sales@filingtoday.com for a quote or more information. |
|

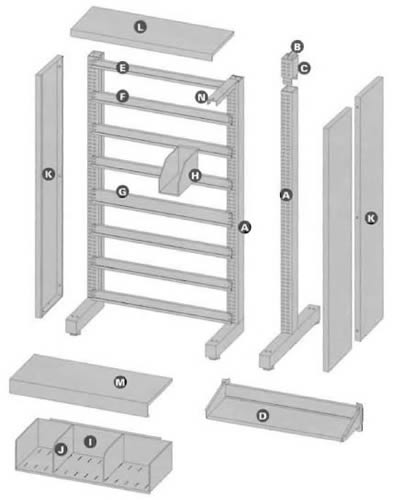

Click on parts (A - N) to view individual prices.
|
(H) File boxes slide easily on
the track, to open space
where and when you need
it. Easy to backshift.
(D) The retractable work shelf
creates a workstation right
within the system.
A 5º tilt to each box allows
folders to be grasped easily
and increases visibility. |
(A) Posts
Posts are the backbone of the Unit Spacefinder system. This cantilevered unit is available in single and double side, letter and legal size. *See color options.
| Item No. |
Description/Size |
Height |
Depth |
Est. Lbs. |
Price |
| 5303-* |
Letter Size SINGLE Side Post (83-1/2" H x 15-3/4" D) |
83-1/2" |
15-3/4" |
23 |
$174.00 |
| 5313-* |
Letter Size SINGLE Side Post (72-1/2" H x 15-3/4" D) |
72-1/2" |
15-3/4" |
21 |
$174.00 |
| 5319-* |
Letter Size SINGLE Side Post (61-1/2" H x 15-3/4" D) |
61-1/2" |
15-3/4" |
19 |
$179.00 |
|
| 5307-* |
Letter Size DOUBLE Side Post (83-1/2" H x 29" D) |
83-1/2" |
29" |
27 |
$203.00 |
| 5317-* |
Letter Size DOUBLE Side Post (72-1/2" H x 29" D) |
72-1/2" |
29" |
24 |
$202.00 |
| 5321-* |
Letter Size DOUBLE Side Post (61-1/2" H x 29" D) |
61-1/2" |
29" |
22 |
$203.00 |
|
| 5304-* |
Legal Size SINGLE Side Post (83-1/2" H x 18-3/4" D) |
83-1/2" |
18-3/4" |
24 |
$188.00 |
| 5314-* |
Legal Size SINGLE Side Post (72-1/2" H x 18-3/4" D) |
72-1/2" |
18-3/4" |
22 |
$204.00 |
| 5320-* |
Legal Size SINGLE Side Post (61-1/2" H x 18-3/4" D) |
61-1/2" |
18-3/4" |
20 |
$201.00 |
|
| 5308-* |
Legal Size DOUBLE Side Post (83-1/2" H x 35" D) |
83-1/2" |
35" |
30 |
$229.00 |
| 5318-* |
Legal Size DOUBLE Side Post (72-1/2" H x 35" D) |
72-1/2" |
35" |
25 |
$235.00 |
| 5322-* |
Legal Size DOUBLE Side Post (61-1/2" H x 35" D) |
61-1/2" |
35" |
23 |
$223.00 |

(B) Post Caps
| Item No. |
Description |
Est. Lbs. |
Price |
| 5380 |
Post caps hold the top trim securely in place. One cap needed for each end of a row. |
0.5 |
$4.57 |
(C) Post Extender
Go beyond your current post height with extenders. *See color options.
| Item No. |
Description |
Height |
Est. Lbs. |
Price |
| 5371-* |
Post Extender - 11" Height |
11" |
4.5 |
$111.00 |
| 5373-* |
Post Extender - 13" Height |
13" |
5 |
$98.50 |
(D) Workshelf
A convenient place to stack work in progress, this retractable shelf stroes out of the way when not in use. *See color options.
| Item No. |
Description |
Width |
Height |
Est. Lbs. |
Price |
| 5259-* |
30" W Retractable Workshelf (7-1/4" H x 30" W) |
30" |
7-1/4" |
27 |
$464.00 |
| 5258-* |
42" W Retractable Workshelf (7-1/4" H x 42" W) |
42" |
7-184" |
34 |
$481.00 |
(E) Top Rails
Rails create the horizontal framework by slotting into posts. Unit boxes hang from an upper rail and are supported by a lower rail. A top rail on top and a wide rail where the workshelf is usually placed. *See color options.
| Item No. |
Description |
Width |
Height |
Est. Lbs. |
Price |
| 5339-* |
30" Top Rail (2-1/4" H x 30" W) |
30" |
2-1/4" |
2.8 |
$34.50 |
| 5349-* |
42" Top Rail (2-1/4" H x 42" W) |
42" |
2-1/4" |
6 |
$52.00 |
(F) Standard Rails / Standard C Rails
*See color options.
| Item No. |
Description |
Width |
Height |
Est. Lbs. |
Price |
| 5330-* |
30" Standard Rail (3-1/2" H x 30" W) |
30" |
3-1/2" |
3.3 |
$25.70 |
| 5342-* |
42" Standard Rail (3-1/2" H x 42" W) |
42" |
3-1/2" |
4.5 |
$33.90 |
| 5333-* |
30" Standard C Rail (3-1/4" H x 30" W) |
30" |
3-1/4" |
4.1 |
$35.10 |
| 5345-* |
42" Standard C Rail (3-1/4" H x 42" W) |
42" |
3-1/4" |
5 |
$72.75 |
(G) Wide Rails
*See color options.
| Item No. |
Description |
Width |
Height |
Est. Lbs. |
Price |
| 5338-* |
30" Wide Rail (4-1/4" H x 30" W) |
30" |
4-1/4" |
4 |
$33.50 |
| 5348-* |
42" Wide Rail (4-1/4" H x 42" W) |
42" |
4-1/4" |
6 |
$38.90 |
(H) Unit File Boxes
A shelf and a file support all in one. Unit boxes hang on rails supporting your information. They also slide on rails or can be removed for quick file transport. **See color options. Available in Ivory Beige or Cool Grey.
| Item No. |
Description |
File Type |
Width |
Est. Lbs. |
Price |
| 5281-** |
4" Wide - Letter Size Unit File Box |
Letter |
4" |
- |
$6.35 |
| 5283-** |
6" Wide - Letter Size Unit File Box |
Letter |
6" |
- |
$7.49 |
|
| 5282-** |
4" Wide - Legal Size Unit File Box |
Legal |
4" |
- |
$9.53 |
| 5284-** |
6" Wide - Legal Size Unit File Box |
Legal |
6" |
- |
$9.14 |
(I) Stationary Shelves
Need shelves for other media storage? These fully assembled steel welded shelves slot into posts for quick assembly or repositioning. *See color options.
| Item No. |
Description/Size |
Width |
Depth |
Height |
Est. Lbs. |
Price |
| 5216-* |
30" Letter Size Shelves
(7-1/4" H x 30" W) |
30" |
11" |
7-1/4" |
13 |
$150.00 |
| 5217-* |
42" Letter Size Shelves (7-1/4" H x 42" W) |
42" |
11" |
7-1/4" |
16 |
$181.00 |
|
| 5218-* |
30" Legal Size Shelves
(7-1/2" H x 30" W) |
30" |
14" |
7-1/4" |
17 |
$189.00 |
| 5219-* |
42" Legal Size Shelves (7-1/4" H x 42" W) |
42" |
14" |
7-1/4" |
20 |
$202.00 |
| 5220 |
48" Legal Size Shelves (7-1/4" H x 48" W) |
48" |
14" |
7-1/4" |
24 |
$251.00 |
(J) File Supports
** See color options. Available in Ivory Beige or Cool Grey.
| Item No. |
Description |
Width |
Est. Lbs. |
Price |
| 5769-** |
File Support for Flat Letter Shelves (6-3/8" H x 11-3/8" W) |
11-3/8" |
1 |
$15.00 |
| 5779-** |
File Support for Flat, Tilt Legal Shelves (6-3/8" H x 14-3/8" W) |
14-3/8" |
1 |
$15.30 |
Trim panels enclose the unit for a finished look. End panels are "universal", working on either end or either side of a post.
(K) End Panels
*See color options.
| Item No. |
Description |
Height |
Width |
Est. Lbs. |
Price |
| 5263-* |
84" Single Letter End Panel (84" H x 13-1/4" W) |
84" |
13-1/4" |
19 |
$188.00 |
| 5233-* |
73" Single Letter End Panel (73" H x 13-1/4" W) |
73" |
13-1/4" |
15 |
$215.00 |
| 5265-* |
62" Single Letter End Panel (62" Hx 13-1/4" W) |
62" |
13-1/4" |
12 |
$188.00 |
|
| 5264-* |
84" Single Legal End Panel (84" H x 16-1/4" W) |
84" |
16-1/4" |
19 |
$215.00 |
| 5234-* |
73" Single Legal End Panel (73" H x 16-1/4" W) |
73" |
16-1/4" |
15 |
$282.00 |
| 5266-* |
62" Single Legal End Panel (62" H x 16-1/4" W) |
62" |
16-1/4" |
12 |
$258.00 |
(L) Top Panels
*See color options.
| Item No. |
Description |
Width |
Depth |
Est. Lbs. |
Price |
| 5275-* |
30" W Letter Size Top Panel (30" W x 14-3/4"D) |
30" |
14-3/4" |
6 |
$66.75 |
| 5277-* |
42" W Letter Size Top Panel (42" W x 14-3/4" D) |
42" |
14-3/4" |
9 |
$71.00 |
|
| 5276-* |
30" W Legal Size Top Panel (30" W x 17-3/4" D |
30" |
17-3/4" |
7 |
$75.00 |
| 5278-* |
42" W Legal Size Top Panel (42" W x 17-3/4" D) |
42" |
17-3/4" |
10 |
$77.25 |
| 5279-* |
48" W Legal Size Top Panel (48" W x 17-3/4" D) |
48" |
17-3/4" |
11 |
$140.00 |
(M) Bottom Panels
*See color options.
| Item No. |
Description |
Width |
Depth |
Est. Lbs. |
Price |
| 5271-* |
30" W Letter Bottom Panel (30" W x 12-3/4" D) |
30" |
12-3/4" |
6 |
$77.75 |
| 5273-* |
42" W Letter Bottom Panel (42" W x 12-3/4" D) |
42" |
12-3/4" |
9 |
$77.75 |
|
| 5272-* |
30" W Legal Bottom Panel (30" W x 15-3/4" D) |
30" |
15-3/4" |
7 |
$102.00 |
| 5274-* |
42" W Legal Bottom Panel (42" W x 15-3/4" D) |
42" |
15-3/4" |
10 |
$88.25 |
| 5270-* |
48" W Legal Bottom Panel (48" W x 15-3/4" D) |
48" |
15-3/4" |
11 |
$135.00 |
(N) Top Bracket and Shim
**See color options. Available in Ivory Beige or Cool Grey.
| Item no. |
Description |
Types |
Est. Lbs. |
Price |
| 5391-** |
Letter Size Top Bracket with Shim - STANDARD |
Standard |
1.3 |
$25.00 |
| 5393-** |
Letter Size Top Bracket with Shim - REINFORCED |
Reinforced |
2 |
$57.25 |
|
| 5392-** |
Legal Size Top Bracket with Shim - STANDARD |
Standard |
1.7 |
$30.50 |
| 5394-** |
Legal Size Top Bracket with Shim - REINFORCED |
Reinforced |
2.5 |
$59.50 |
Please note all our products may not be published on our website, prices may vary time to time and some items may be discontinued or replaced so we kindly request you to send us an email at sales@filingtoday.com or call us at 1-888-891-1970 for more details
|
|
